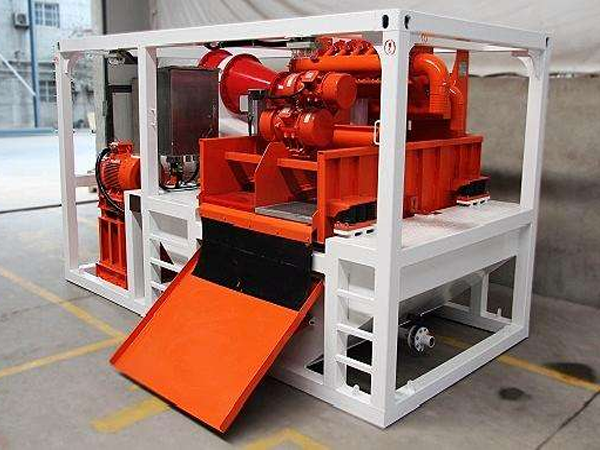

Desander
Desander
1. The hydrocyclone is made of polyurethane or high chromium cast iron, which significantly prolongs its service life.
2. The hydrocyclone is connected by clamp, which is convenient to replace.
3. The inlet and outlet of hydrocyclone can be equipped with ball valve, and the number of working hydrocyclones can be selected independently.
4. Vibration motor and electrical components are of international famous brands.
model | ZCCS/200×1/2 | ZCCS/250×1/2 | ZCCS/250×3 | ZCCS/300×1/2 |
Hydrocyclone mm | DN200 | DN250 | DN250 | DN300 |
Number of Hydrocyclones | 1/2 | 1/2 | 3 | 1/2 |
working pressure MPa | 0.2～0.45 | |||
Separation size um | 47～76 | |||
Treatment capacity m3/h | ≤60/120 | ≤100/200 | ≤300 | ≤120/240 |
Screen area mm | 600×1480 | |||
Inlet pipe diameter mm | DN125/DN150 | DN150 | DN150 | DN200 |
Outlet pipe diameter mm | DN150/DN200 | DN200 | DN200 | DN250 |
Matching sand pump KW | 45/55 | 45/55 | 55 | 55/75 |
Theoretical weight Kg | 880 | 1160 | 1460 | 1520 |
Dimensions mm | 1500×1160×2000 | 1800×1400×2200 | 1800×1500×2200 | 1800×1650×2400 |
