Submersible Slurry Pump
Submersible Slurry Pump

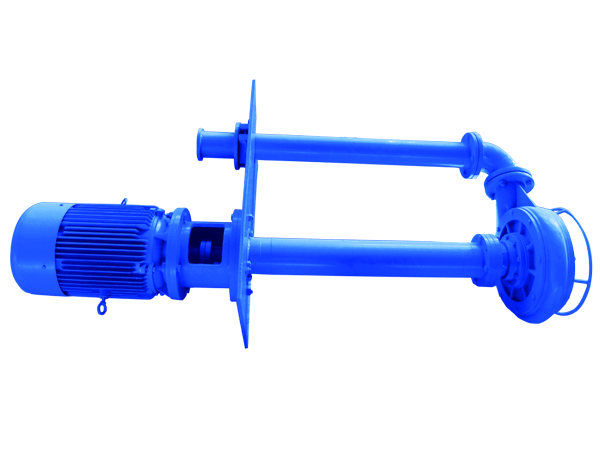

The submerged slurry pump is a vertical single-stage single suction cantilever structure centrifugal pump, which is made of wear-resistant alloy, and can transport the medium containing large concentration of solid particles; because there is no bearing between the impeller and the pump shell, and the shaft seal is not used, so it is maintenance free and high temperature resistant. It is a supporting equipment to provide power for desander, desilter and centrifuge.
|
model |
flowm3/h |
Yang Chengm |
Motor powerKW |
speedr/min |
efficiency% |
|
ZC50YZ20-18 |
20 |
18 |
2 |
1450 |
42 |
|
ZC50YZ40-10 |
40 |
10 |
4 |
1450 |
47 |
|
ZC50YZ50-12 |
60 |
11 |
5.5 |
1450 |
55 |
|
ZC80YZ50-20 |
60 |
18 |
7.5 |
1450 |
48 |
|
ZC80YZ80-20B |
80 |
13.5 |
7.5 |
1450 |
51 |
|
ZC80YZ80-20A |
90 |
15 |
11 |
1450 |
51 |
|
ZC100YZ100-30 |
60 |
36 |
22 |
1450 |
54 |
|
ZC100YZ100-30A |
75 |
30 |
18.5 |
1450 |
54 |
|
ZC100YZ160-38B |
82 |
33 |
30 |
1450 |
50 |
|
ZC150YZ250-40B |
120 |
28 |
37 |
1450 |
50 |
|
ZC150YZ250-40A |
135 |
35 |
45 |
1450 |
51 |
